KDE-CF215-TP-M4
Overview
Compatible with the KDE-TPA-ML-M4 Triple-Propeller Blade Adapter (ML) Series.
New production version has increased the propeller screw size from M3 to M4
The new KDE Direct Carbon-Fiber Propeller Blades are constructed of true carbon-fiber 3K materials - same as we supply to our military-customers, and now available for commercial and industrial applications. All propellers are dynamically-balanced and provided in matched-sets, so simply install the blades and go fly - no need for secondary balancing or other headaches that plague competitive offerings. The Propeller Blade Series is designed for simple installation to the KDE Direct UAS Multi-Rotor Propeller Blade Adapters and UAS Multi-Rotor Brushless Motor Series, for unprecedented smoothness and efficient flight performance.
Note: propeller blades are dynamically-balanced matched sets, for smooth and vibration-free flight operation. Blades cannot be intermixed between sets - make sure to keep organized as matched blades to prevent balance-related concerns. If a single-blade is damaged during operation, make sure to replace the propeller blade set (CW or CCW).
Specifications
Material: Carbon-Fiber, 3K Matrix
Compatible Propeller Adapters:
- KDE-TPA-ML
- Note: two adapters required for each set of propeller blades (CW and CCW)
Compatible Torque Wrench:
- KDE-TWWI (1.0 - 5.0 in-lb)
- KDE-TW4525 (4.5 in-lb, 2.5 mm)
Compatible Brushless Motors:​​​
Includes:

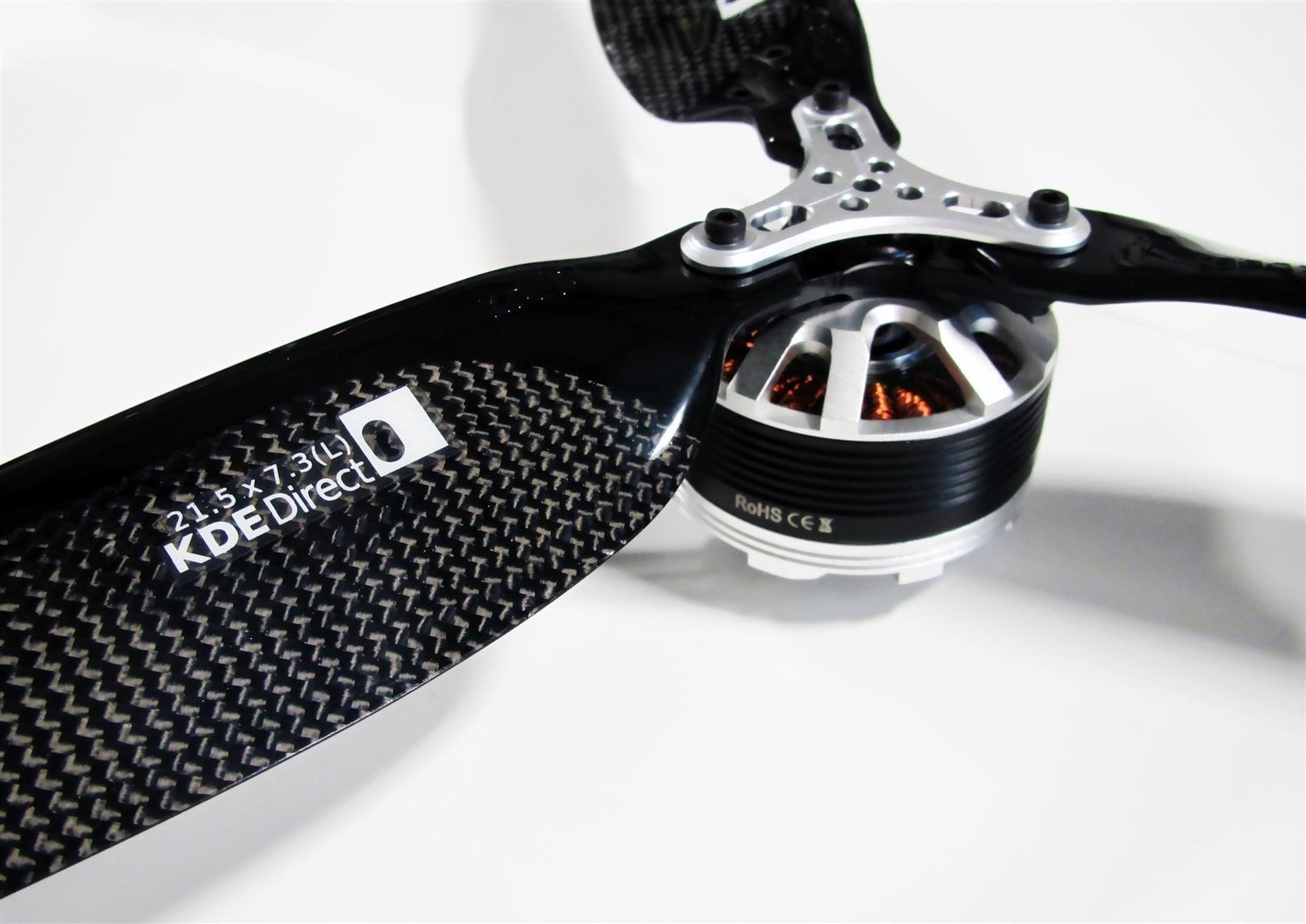

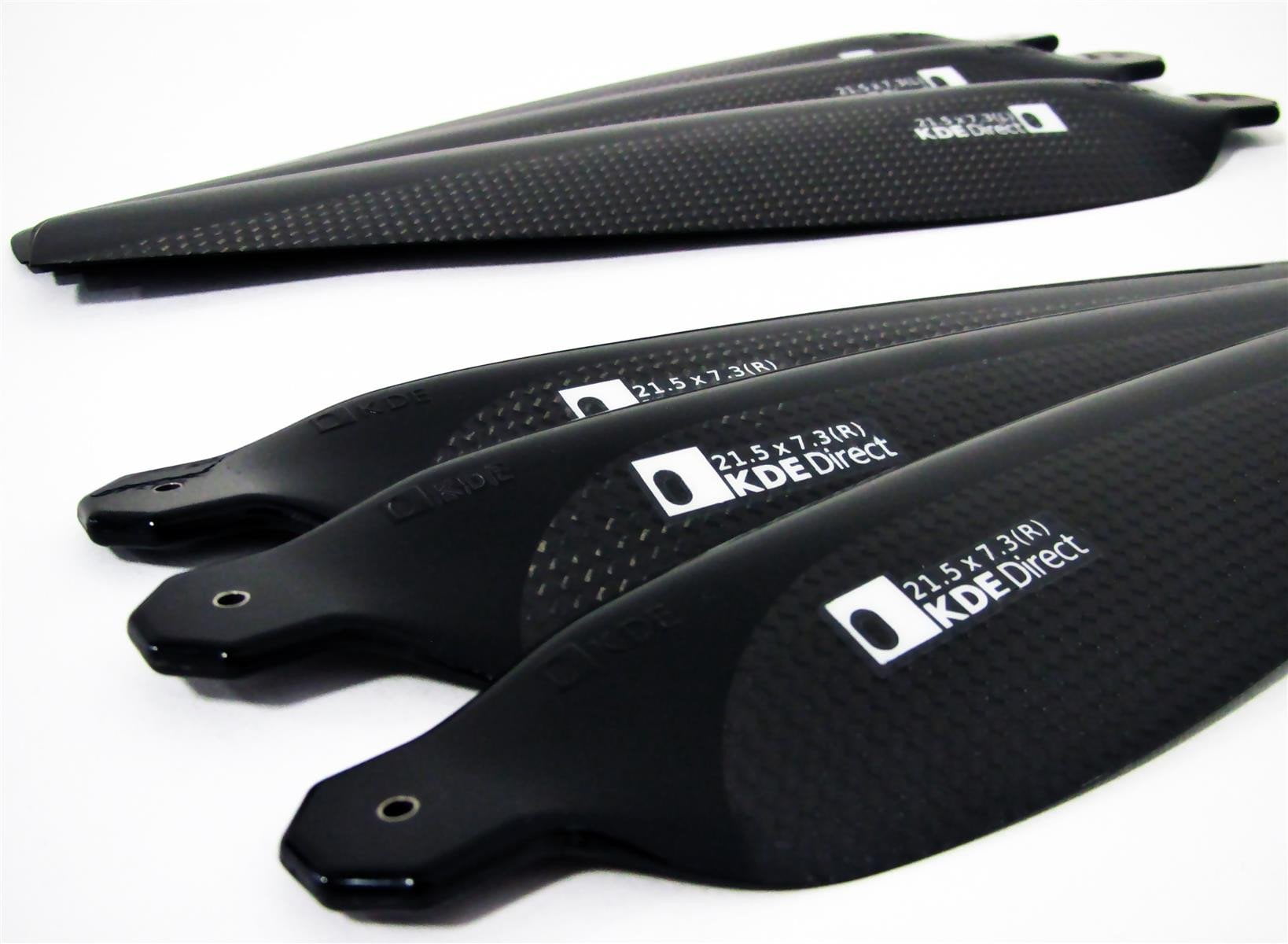

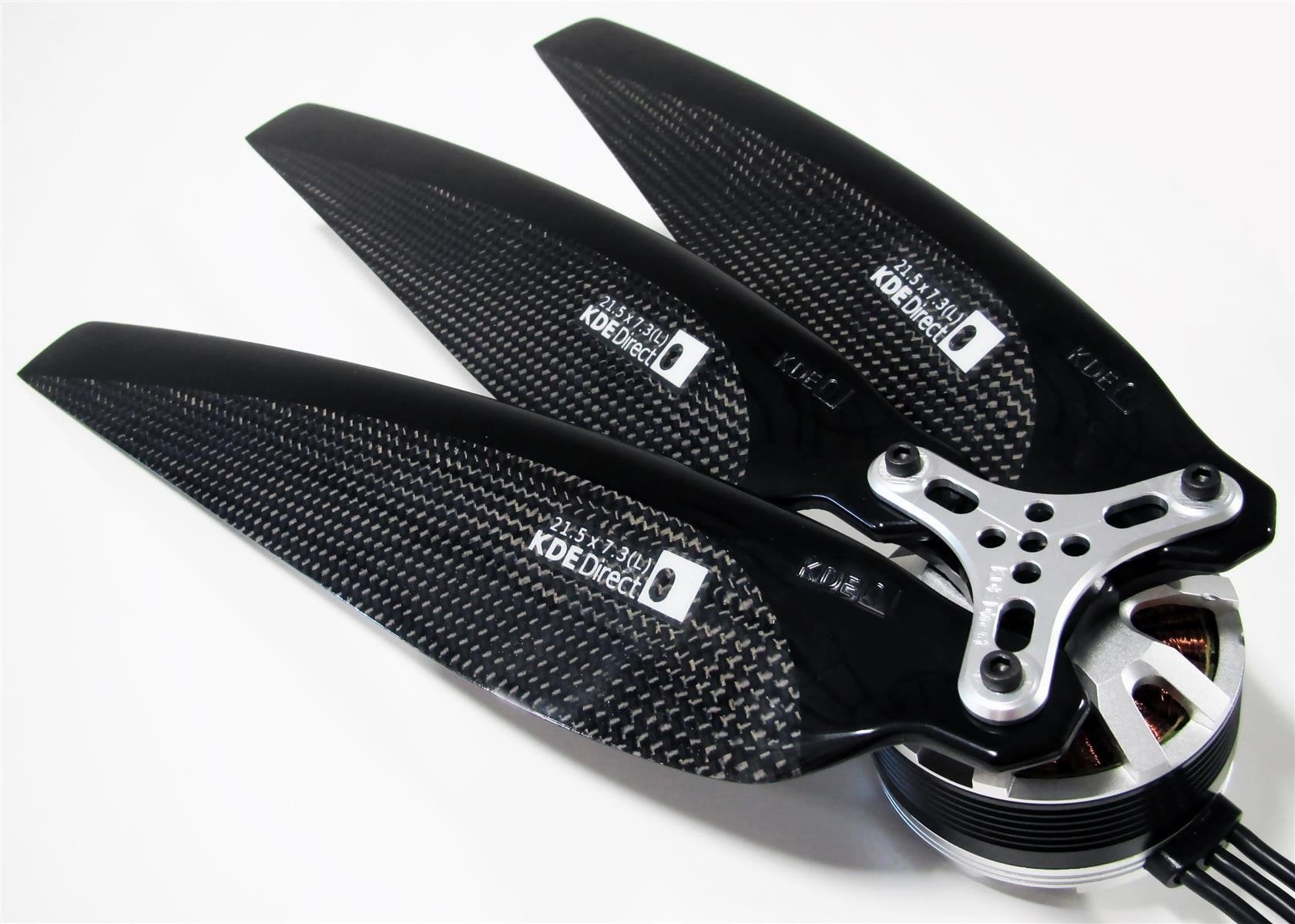

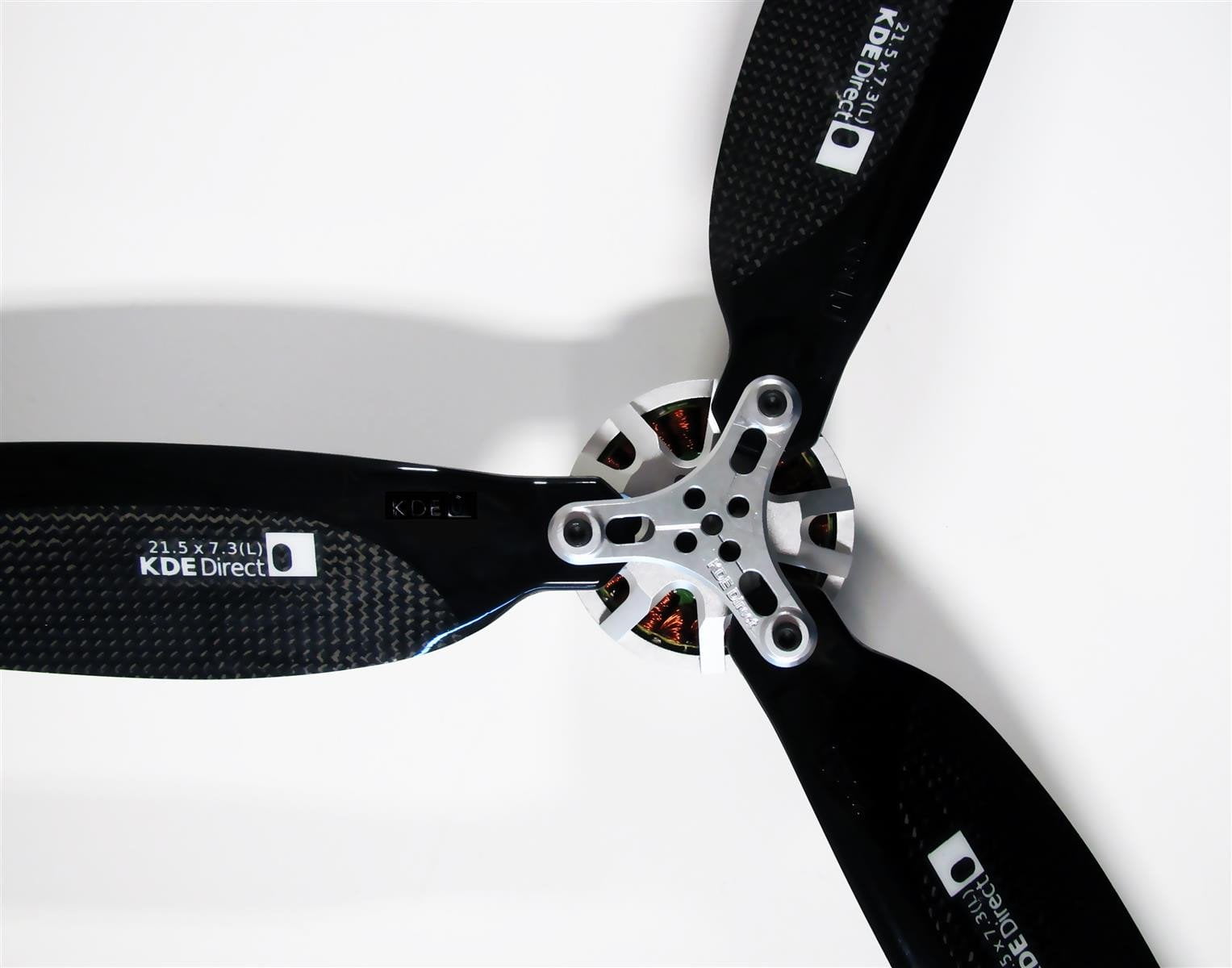

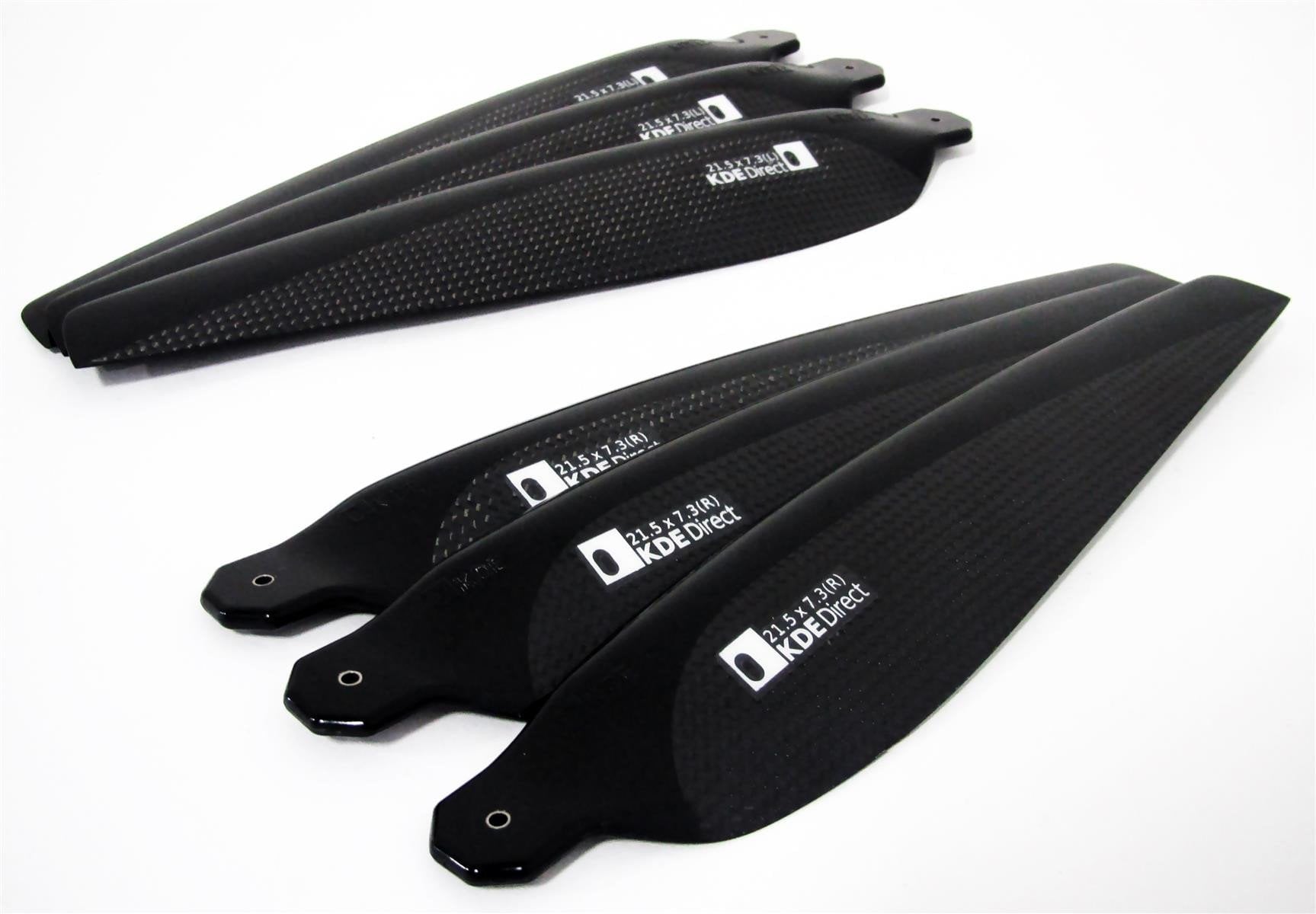

- Three (3) KDE Direct Propeller Blades, 21.5" x 7.3, Triple-Edition (CW Matched Set)
- Three (3) KDE Direct Propeller Blades, 21.5" x 7.3, Triple-Edition (CCW Matched Set)
Weight:
25.8 g/blade (design is FEA optimized for maximum strength and minimum weight)
Manuals
KDE DIRECT DOES NOT RELEASE CAD MODELS FOR PROPELLER'S DUE TO OUR PROPRIETARY AIRFOIL DESIGN
