Recommended ESC: KDE Direct UAS 55A+ Multi-Rotor Series
Alternate ESC: KDE Direct UAS 35A+ Multi-Rotor Series

Recommended Propeller: KDE Direct 15.5" x 5.3 Dual-Propeller Blades

Includes:

• One (1) KDE Direct XF UAS M6 x 17mm Propeller Adapter Assembly (KDEXF-PA617-RH)
• One (1) KDE Direct XF UAS M6/M8 Propeller Adapter Collar (35XX/40XX/42XX Edition)

• One (1) KDE Direct XF UAS Motor Adapter Plate Assembly (35XX Edition)
• One (1) KDE Direct XF UAS Propeller Bracket Assembly (Clear Edition)
• One (1) KDE Direct XF UAS Propeller Bracket Adapter (ф4.0 x ф6.0 x 2.5mm)
• Three (3) KDE Direct XF ф3.5mm 24K Bullet Connectors (KDEXF-BC35, Female)
• Four (4) M4 x 0.7 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
• Two (2) M3 x 0.5 x 10 mm Socket Head Cap Screws (Class 12.9)
• Three (3) M3 x 0.5 x 8 mm Socket Head Cap Screws (Class 12.9)

Replacement Parts:

• KDE35XF-BRK
• KDE3510XF-SR

The new KDE Direct 3510XF-475 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and sUAS applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.

Motor includes 200°C, 15 AWG, 760mm silicone-wire leads and ф3.5mm 24K Bullet Connectors (KDEXF-BC35, pre-soldered to the motor leads and ESC matching Bullet Connectors).

Material: Neodymium N45UH

Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and sUAS applications: M3 x ф25mm, M4 x ф25mm, M3 x ф32mm (DJI S1000/S900/S800 EVO), M2.5 x ф32mm (DJI S800).

Finish:

• Clear anodize, mirror-polish CNC gloss endbells
• Black electro-plate, CNC gloss central core (flux ring)

Compatible With:

• Replacement Shaft: KDE3510XF-SR
• Replacement Bearings: KDE35XF-BRK
• Propeller Adapter (Right-hand): KDEXF-PA617-RH
• Propeller Adapter (Left-hand): KDEXF-PA617-LH

Full Specifications:

*: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor.

• KDE3510XF-475 Performance Testing Data Sheet (KDE Direct Propellers) (PDF)

Manuals

• KDE3510XF-475 Design Geometry Dimensions Specification Sheet (PDF)
• KDE3510XF-475 Universal Mounting Pattern Specification Sheet (PDF)
• KDE3510XF-475 Components and Hardware Specification Sheet (PDF)
• KDE3510XF-475 Motor Adapter Plate Specification Sheet (PDF)

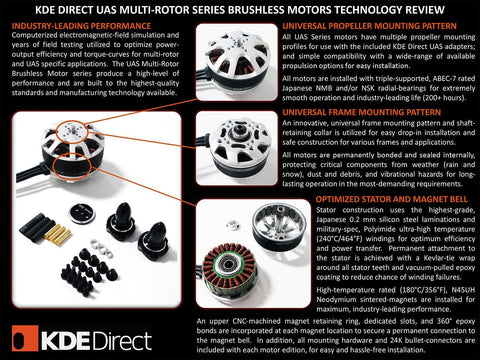

• UAS Multi-Rotor Brushless Motor Series Technology Review (PDF)
• KDE Direct Design Engineering - Episode VIII: XF M-R Brushless Motors (YouTube)

Models

STEP Model (Click here to download)

STL Model (Click here to download)
