KDE4012XF-400
Overview
Recommended ESC: KDE Direct UAS 35A+ HVC Multi-Rotor Series
Alternate ESC: KDE Direct UAS 55A+ Multi-Rotor Series
Recommended Propeller: KDE Direct 15.5" x 5.3 Triple-Propeller Blades
Includes:
- One (1) KDE Direct XF UAS Motor Adapter Plate Assembly (35XX/40XX/42XX Black Edition)
- One (1) KDE Direct XF UAS Propeller Bracket Assembly (Black Edition)
- One (1) KDE Direct XF UAS Propeller Bracket Adapter (ф4.0 x ф6.0 x 2.5mm)
- Three (3) KDE Direct XF ф3.5mm 24K Bullet Connectors (KDEXF-BC35, Female)
- Four (4) M4 x 0.7 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
- Two (2) M3 x 0.5 x 10 mm Socket Head Cap Screws (Class 12.9)
Replacement Parts:

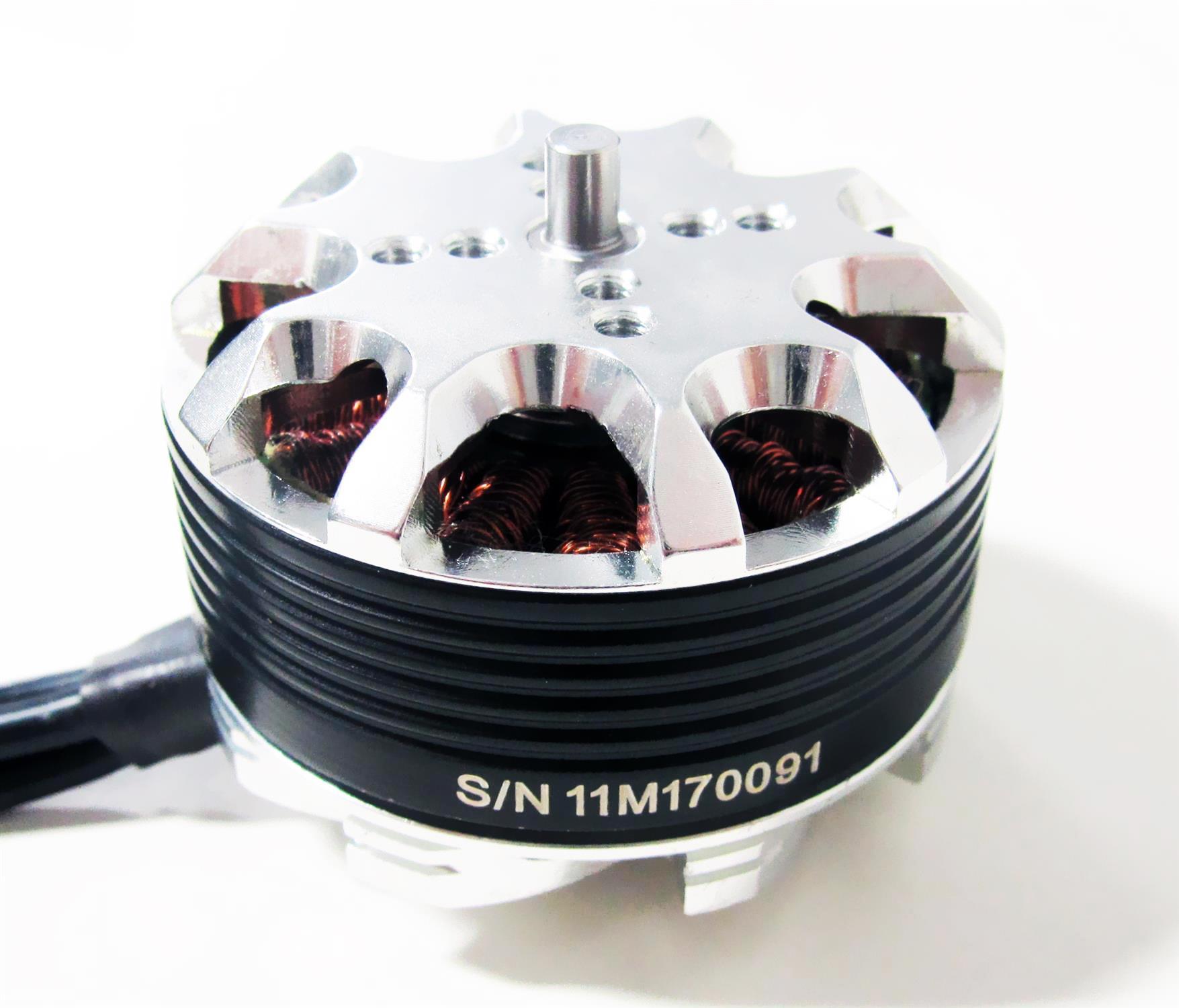

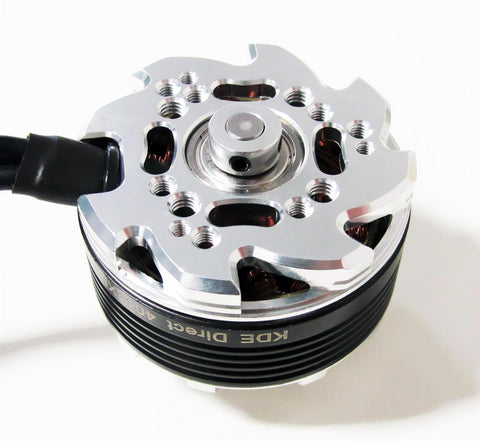

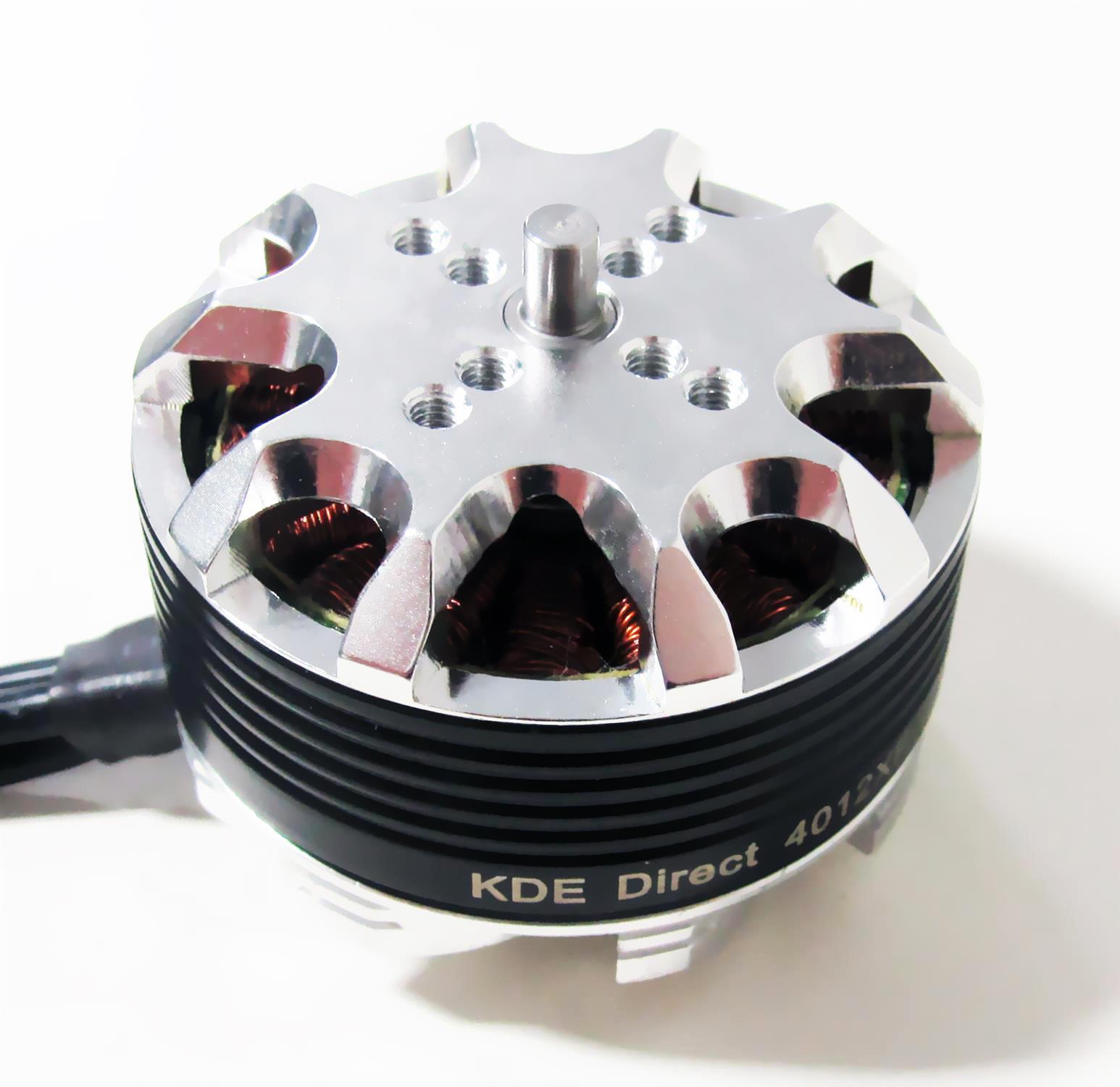

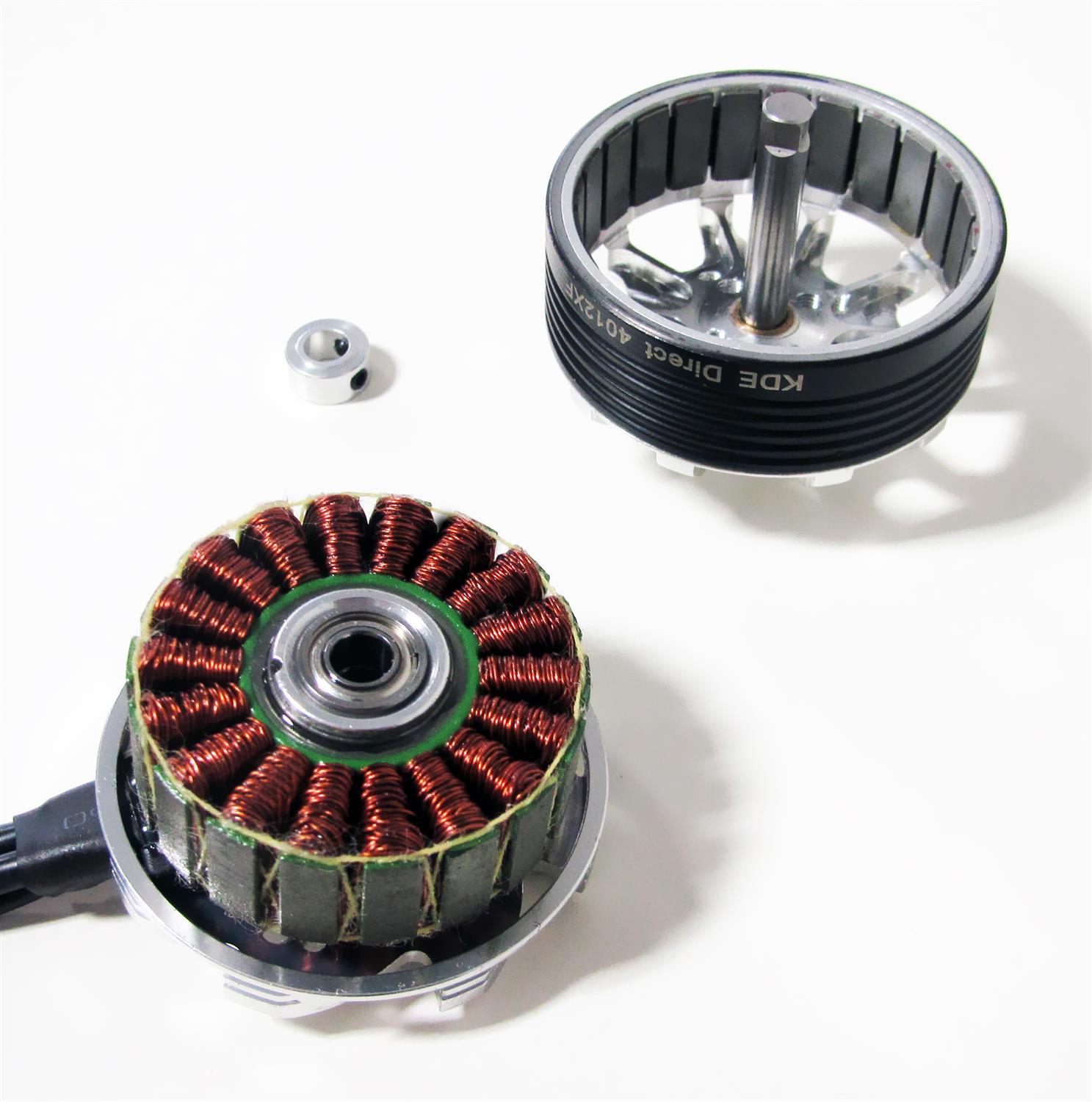

The new KDE Direct 4012XF-400 (D5) Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and sUAS heavy-lift applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.
Motor includes 200°C, 15 AWG, 760mm silicone-wire leads and ф3.5mm 24K Bullet Connectors (KDEXF-BC35, pre-soldered to the motor leads and ESC matching Bullet Connectors).
UAS Multi-Rotor Brushless Motor Series Technology Review (PDF)
