KDE7215XF-135
Overview
Recommended ESC: KDE Direct UAS 95A+ HVC Multi-Rotor Series
Alternate ESC: KDE Direct UAS 125A+ UVC HE Multi-Rotor Series
Recommended Propeller: KDE Direct 27.5" x 8.9 Dual-Propeller Blades

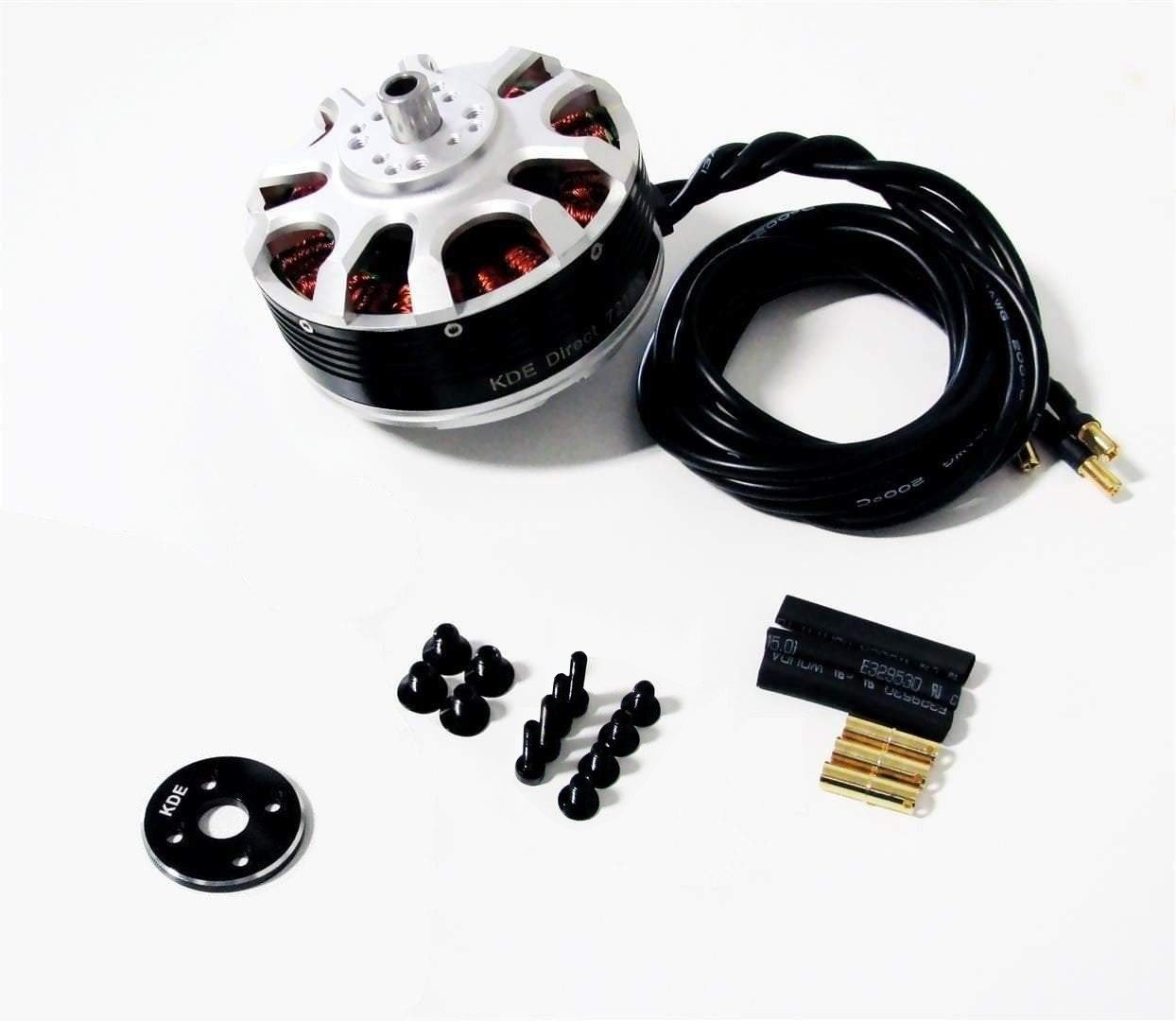

Includes:
- One (1) KDE Direct XF UAS M10 Propeller Bracket Assembly (Black Edition)
- Three (3) KDE Direct XF ф4.0mm 24K Bullet Connectors (KDEXF-BC40, Female)
- Four (4) M5 x 0.8 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
- Four (4) M4 x 0.7 x 8 mm Flat Head Phillips Head Machine Screws (Class 12.9)
- Four (4) M3 x 0.5 x 14 mm Socket Head Cap Screws (Class 12.9)
Replacement Parts:

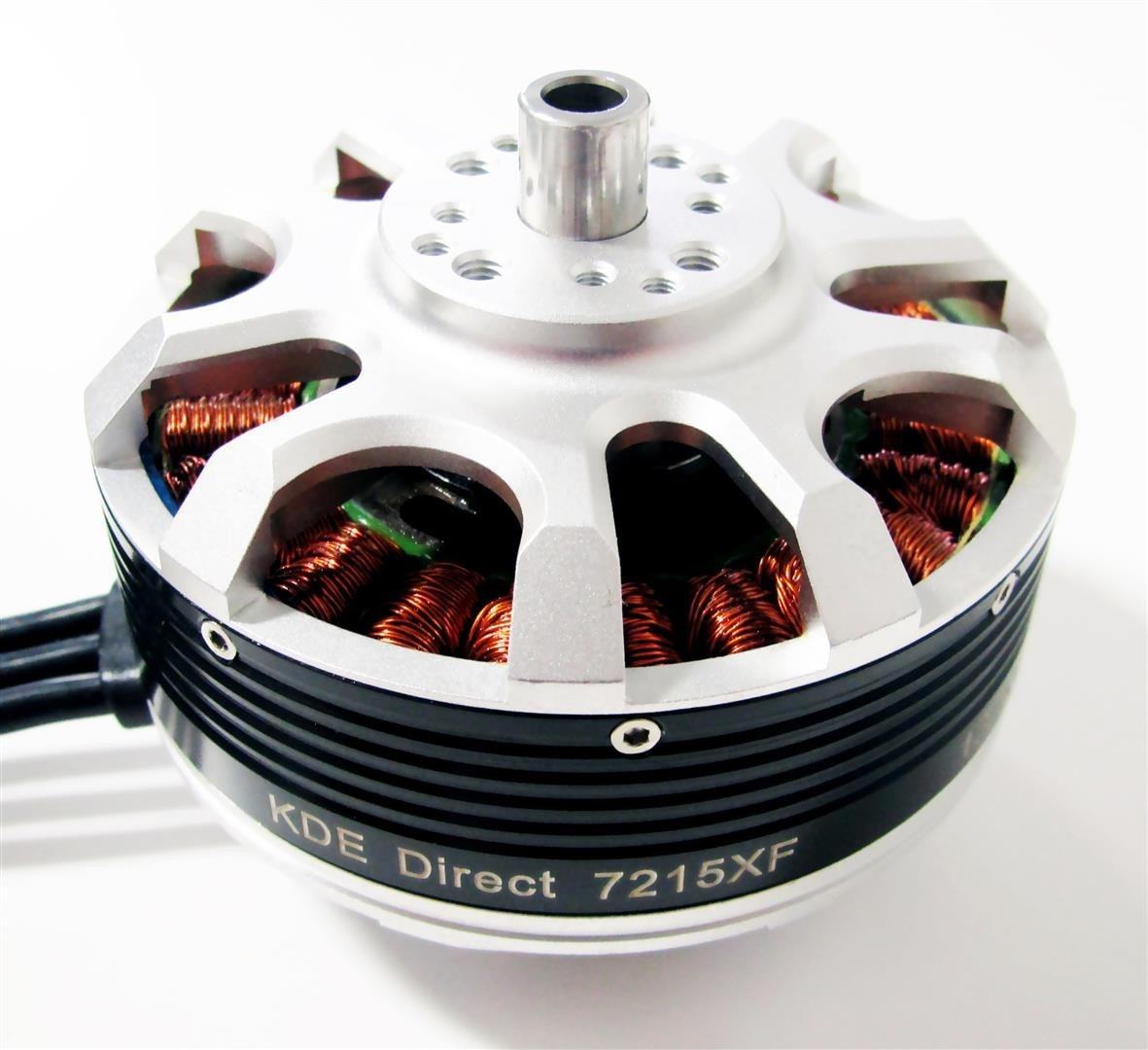

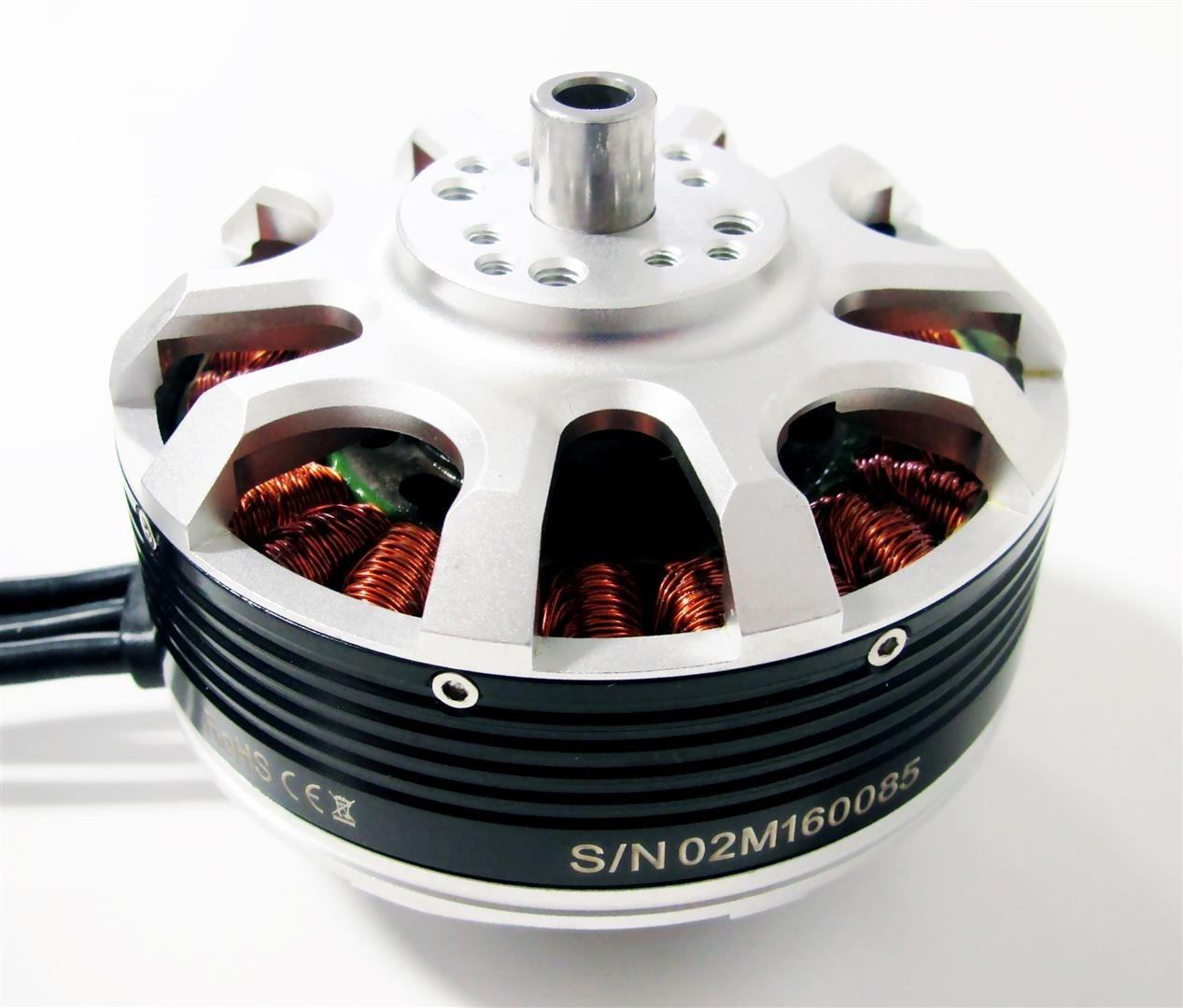

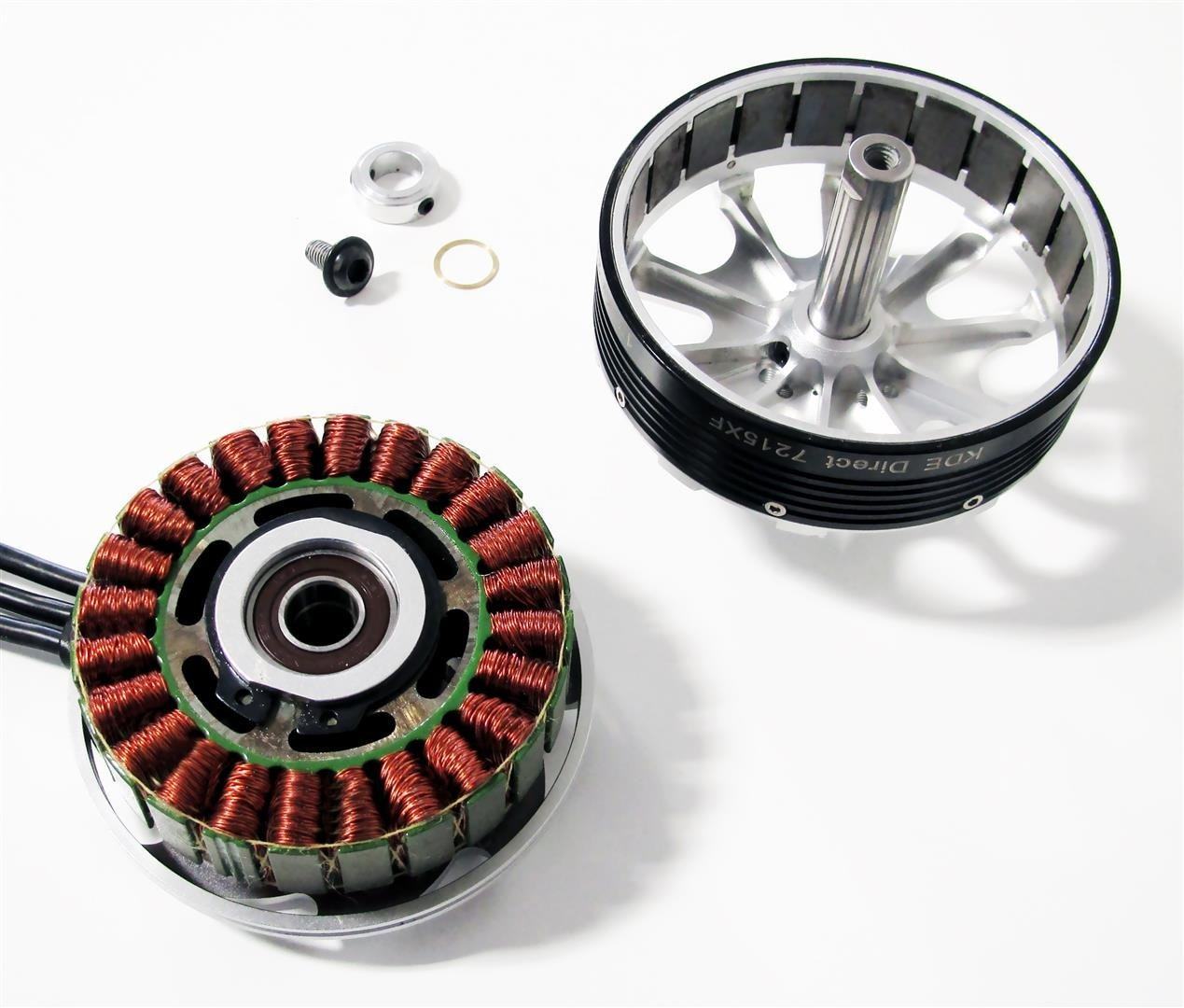

The new KDE Direct 7215XF-135 Multi-Rotor Brushless Motor is an extremely efficient and powerful motor for numerous multi-rotor and UAS heavy-lift applications, and was designed to bring high-quality and vibration-free motors to the market. The motors are designed with performance and durability in-mind, with features unseen in the current market: (1) high-grade, 240°C continuous (340°C maximum) high-temperature solid-core copper windings for failure-free operation in extreme-climates, (2) Japanese-built, 0.2 mm silicon-steel stator laminations and Kevlar tie-wraps for high-efficiency performance, and (3) triple-bearing supported, ABEC-7 bearings for maintenance-free and worry-free flying for hundreds of hours. These are just a few of the advantages built-in to these motors, and every detail of the motors was scrutinized to produce the absolute best available; for a wide-range of flight applications.
Motor includes 200°C, 13 AWG, 760mm silicone-wire leads and ф4.0mm 24K Bullet Connectors (KDEXF-BC40, pre-soldered to the motor leads and ESC matching Bullet Connectors).
KDEXF-BC40, pre-soldered to the motor leads and ESC matching Bullet Connectors).

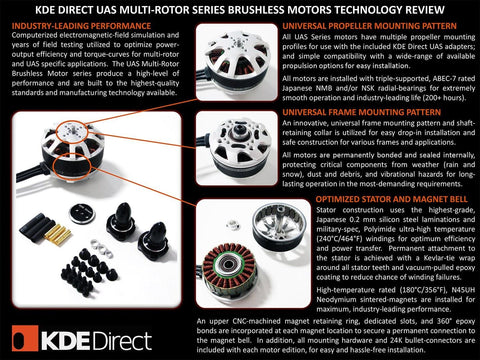

UAS Multi-Rotor Brushless Motor Series Technology Review (PDF)
Specifications
Material: Neodymium N38UH

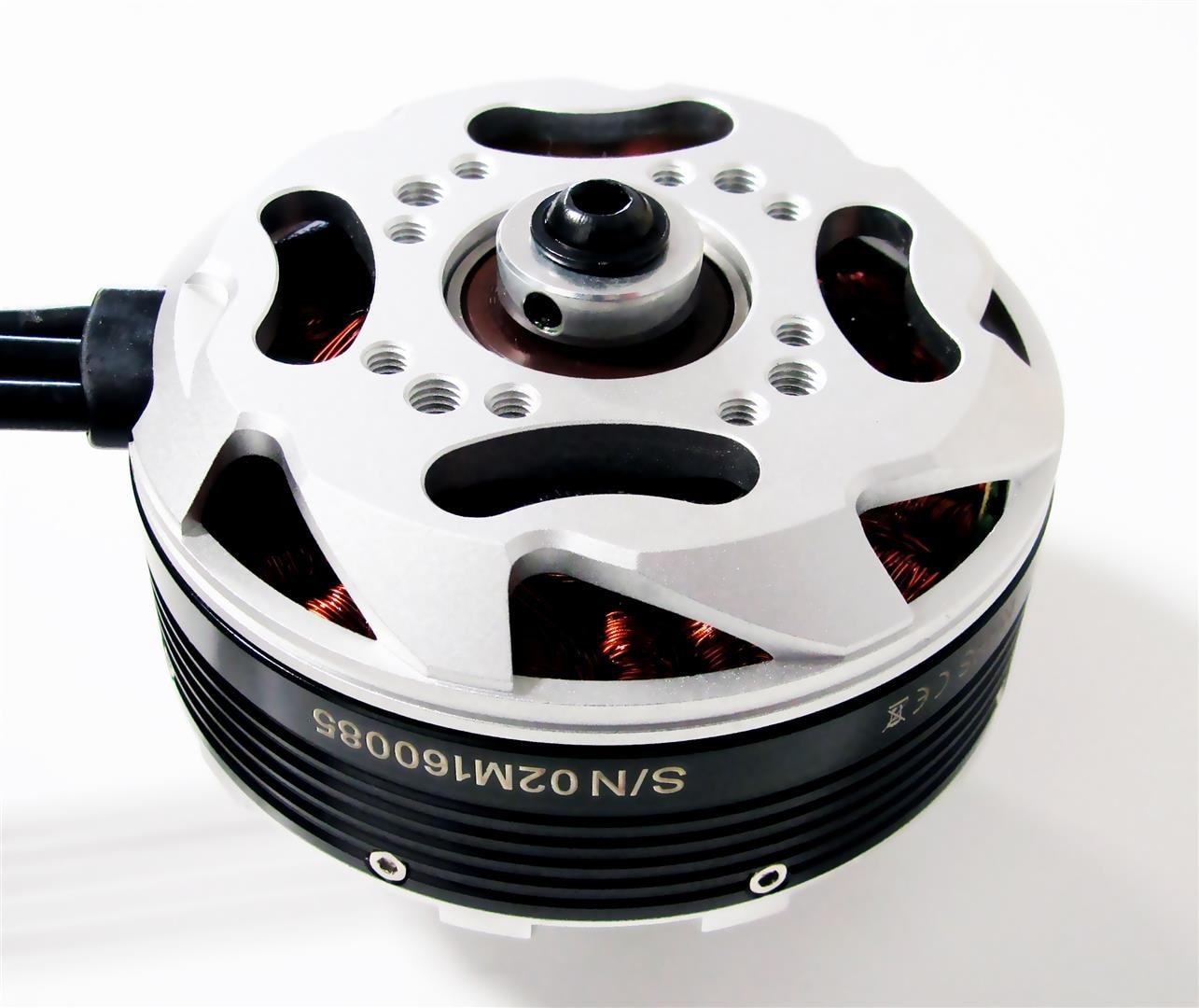

Models: Universal mounting pattern provides simple installation for a wide-range of multi-rotor and UAS applications: M4 x ф35mm, M4 x ф40mm, M5 x ф40mm.
Finish:
- Clear anodize, mirror-polish CNC gloss endbells
- Black electro-plate, CNC gloss central core (flux ring)
Compatible With:
- Replacement Shaft: KDE7215XF-SR
- Replacement Bearings: KDE72XF-BRK
Full Specifications:
| Kv (Motor Velocity Constant) | 135 RPM/V |
| Kt (Motor Torque Constant) | 0.0707 Nm/A |
| Km (Motor Constant) | 0.2600 Nm/√(W) |
| Maximum Continuous Current* | 45 A (180 s) |
| Maximum Continuous Power* | 2915 W (180 s) |
| Voltage Range | 22.2 V (6S LiPo) - 60.9 V (14S LiHV) |
| Io (@10V) | 0.5 A |
| Rm (Wind Resistance) | 0.074 Ω |
| Stator Poles | 24 (24S22P) |
| Magnetic Poles | 22 (24S22P) |
| Bearings | Triple, 6900-2RS/6000-2RS |
| Mount Pattern | M4 x ф35 mm, M5/M4 x ф40 mm |
| Stator Class | 7215, 0.2 mm Japanese |
| Shaft Diameter | ф10 mm (ф10 mm Internal) |
| Shaft Length | 9.5 mm |
| Motor Diameter | ф80.8 mm |
| Motor Rotor Inertia | 2.024 kg*cm^2 |
| Motor Length | 49.5 mm |
| Motor Weight | 555 g (640 g with Wires/Bullets) |
| Propeller Blade Size | Up to 30.5"-TP (24.5"-DP Maximum on 14S) |
| Motor Advance Timing | 22° - 30° |
| Motor Drive Frequency | 16 - 32 kHz |
*: Brushless motor requires consistent open airflow (5 mph or greater) across the windings to maintain maximum continuous current and power ratings during operation. Performance figures are provided as guidelines for normal conditions and operation; environmental factors, such as air temperature and humidity, can significantly alter the maximum performance limits of the motor.

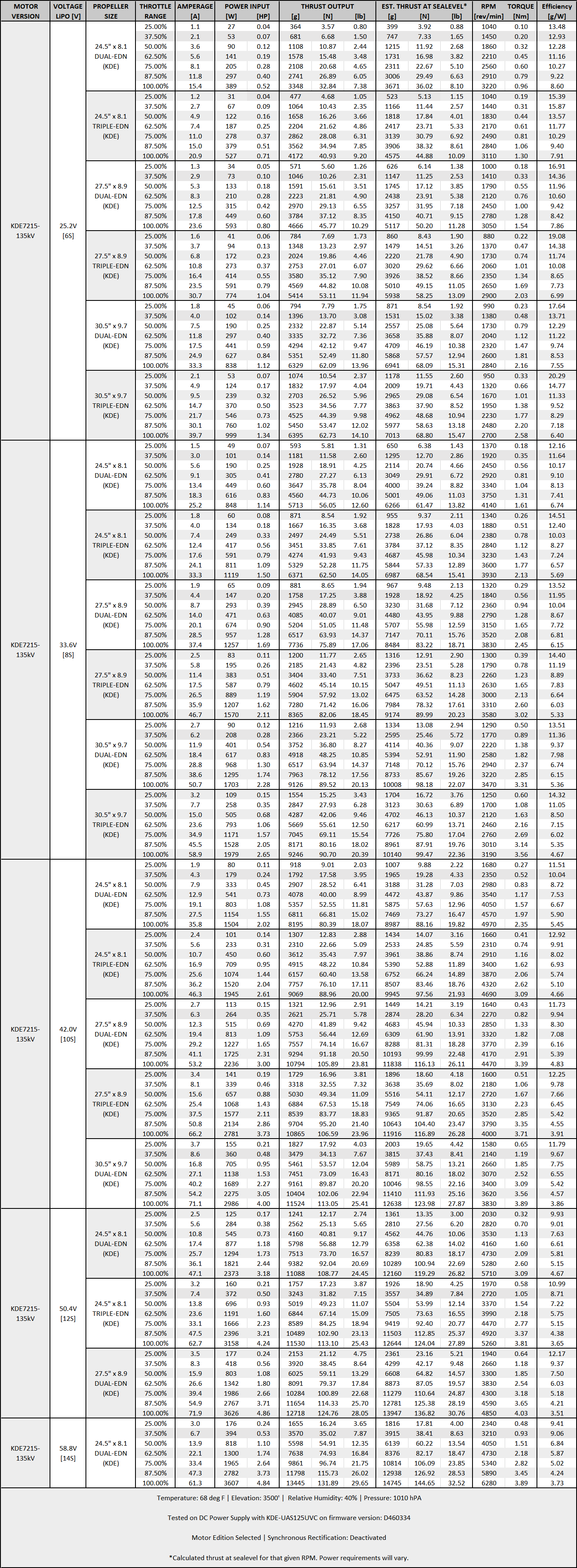

Performance Data
Compatible Configurations
| Voltage | Propeller | Compatible ESCs |
| 6S | 24.5" x 8.1 DUAL-EDN (KDE) | 55A |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 24.5" x 8.1 TRIPLE-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 24.5" x 8.1 HEX-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 27.5" x 8.9 DUAL-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 27.5" x 8.9 TRIPLE-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 27.5" x 8.9 HEX-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 30.5" x 9.7 DUAL-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 30.5" x 9.7 TRIPLE-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 8S | 24.5" x 8.1 DUAL-EDN (KDE) | 55A |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 24.5" x 8.1 TRIPLE-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 24.5" x 8.1 HEX-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 27.5" x 8.9 DUAL-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 27.5" x 8.9 TRIPLE-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 30.5" x 9.7 DUAL-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 30.5" x 9.7 TRIPLE-EDN (KDE) | ||
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 10S | 24.5" x 8.1 DUAL-EDN (KDE) | 55A |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 24.5" x 8.1 TRIPLE-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 24.5" x 8.1 HEX-EDN (KDE) | ||
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 27.5" x 8.9 DUAL-EDN (KDE) | 55A | |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 27.5" x 8.9 TRIPLE-EDN (KDE) | 75A | |
| 85A | ||
| 95A | ||
| 125A | ||
| 30.5" x 9.7 DUAL-EDN (KDE) | 75A | |
| 85A | ||
| 95A | ||
| 125A | ||
| 12S | 24.5" x 8.1 DUAL-EDN (KDE) | 55A |
| 75A | ||
| 85A | ||
| 95A | ||
| 125A | ||
| 24.5" x 8.1 TRIPLE-EDN (KDE) | 75A | |
| 85A | ||
| 95A | ||
| 125A | ||
| 27.5" x 8.9 DUAL-EDN (KDE) | 75A | |
| 85A | ||
| 95A | ||
| 125A | ||
| 14S | 24.5" x 8.1 DUAL-EDN (KDE) | 85A |
| 125A |
Manuals & Models
Manuals
- KDE7215XF-135 Design Geometry Dimensions Specification Sheet (PDF)
- KDE7215XF-135 Universal Mounting Pattern Specification Sheet (PDF)
- KDE7215XF-135 Components and Hardware Specification Sheet (PDF)
- UAS Multi-Rotor Brushless Motor Series Technology Review (PDF)
- KDE Direct Design Engineering - Episode VIII: XF M-R Brushless Motors (YouTube)
Models
To decompress the files, any reputable unarchiver will work such as WinRAR, 7-Zip, PeaZip, etc.
